SM02-48-750-MD02_375_1CS48x240F-HP-BE03-C

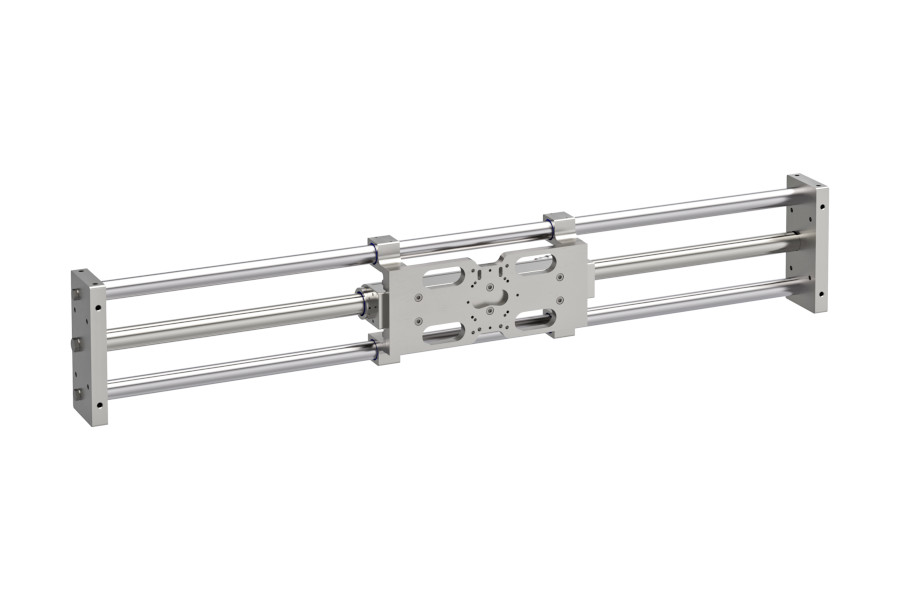

Linear Module, Plain Bearing, Mat. 1.4112, Stroke max 375 mm

SM02-48-750-MD02_375_1CS48x240F-HP-BE03-C

Linear Module, Plain Bearing, Mat. 1.4112, Stroke max 375 mm
Item No. 0150-5822
Status

Active

Standard delivery programm

3 - 5 Weeks

‌‌
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke 465 mm
Weight Compensation (-MS) no
Peak Force 477 N
Continuous Force 139 N
Repeatability ±0.05 mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor Edelstahl 1.4404/316L
Material Guide Shaft Edelstahl 1.4112/440B
IP Protection Class IP69

The item has been added to your shopping cart.
The item has been added to your shopping cart.
The item has been added to the watch list.
The item has been added to the watch list.

This article ist not available. Yo can get a message when this article will be available again. Please fill in your mail adress and click on "send".

Details

‌‌
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke 465 mm
Weight Compensation (-MS) no
Peak Force 477 N
Continuous Force 139 N
Repeatability ±0.05 mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor Edelstahl 1.4404/316L
Material Guide Shaft Edelstahl 1.4112/440B
IP Protection Class IP69

Documents

Name Version Typ Größe
Data sheet 0185-0158 (DE): Linear Modules SM02 SSCP 1V1 PDF 2.56M
Data sheet 0185-0158 (EN): Linear Modules SM02 SSCP 1V1 PDF 2.50M
Installation guide 0185-0177 (DE): Linear Modules SM02 SSCP 1V1 PDF 4.37M
Installation guide 0185-0177 (EN): Linear Modules SM02 SSCP 1V1 PDF 4.55M
