Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 105 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |

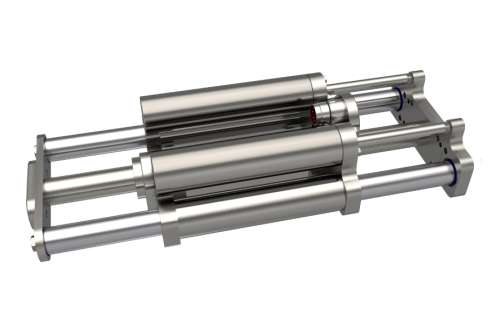

Linear Modules SM01-48-SSCP
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 105 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 105 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 105 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 255 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 255 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 255 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 375 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 375 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 465 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 555 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 312 | N |
Continuous Force | 87 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 75 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 75 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 75 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 75 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 165 | mm |
Weight Compensation (-MS) | 120 | N |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Edelstahl 1.4404/316L | |
IP Protection Class | IP69 |
Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
Technical Data | ||
Max. Stroke | 285 | mm |
Weight Compensation (-MS) | no | |
Peak Force | 477 | N |
Continuous Force | 139 | N |
Repeatability | ±0.05 | mm |
Motorkabel | ||
Supported Drives | ||
Mechanische Daten | ||
Material Plate / Motor | Edelstahl 1.4404/316L | |
Material Guide Shaft | Hartverchromt | |
IP Protection Class | IP67S |
