Linear Modules SM01-48-SSCP

Select order:

Numbers of articles:

Choose list type:

Hygienisches Linearmodul aus Edelstahl mit Linearkugellager: für anspruchsvolle Anwendungen in Feucht- oder Nassbereichen.

Technische Daten
Max. Hub	255	mm
Gewichtausgleich (-MS)	200	N
Max. Kraft	312	N
Nennkraft	87	N
Wiederholgenauigkeit	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Platte / Motor	Edelstahl 1.4404/316L
Material Führungwelle	Edelstahl 1.4404/316L
IP Schutzklasse	IP69

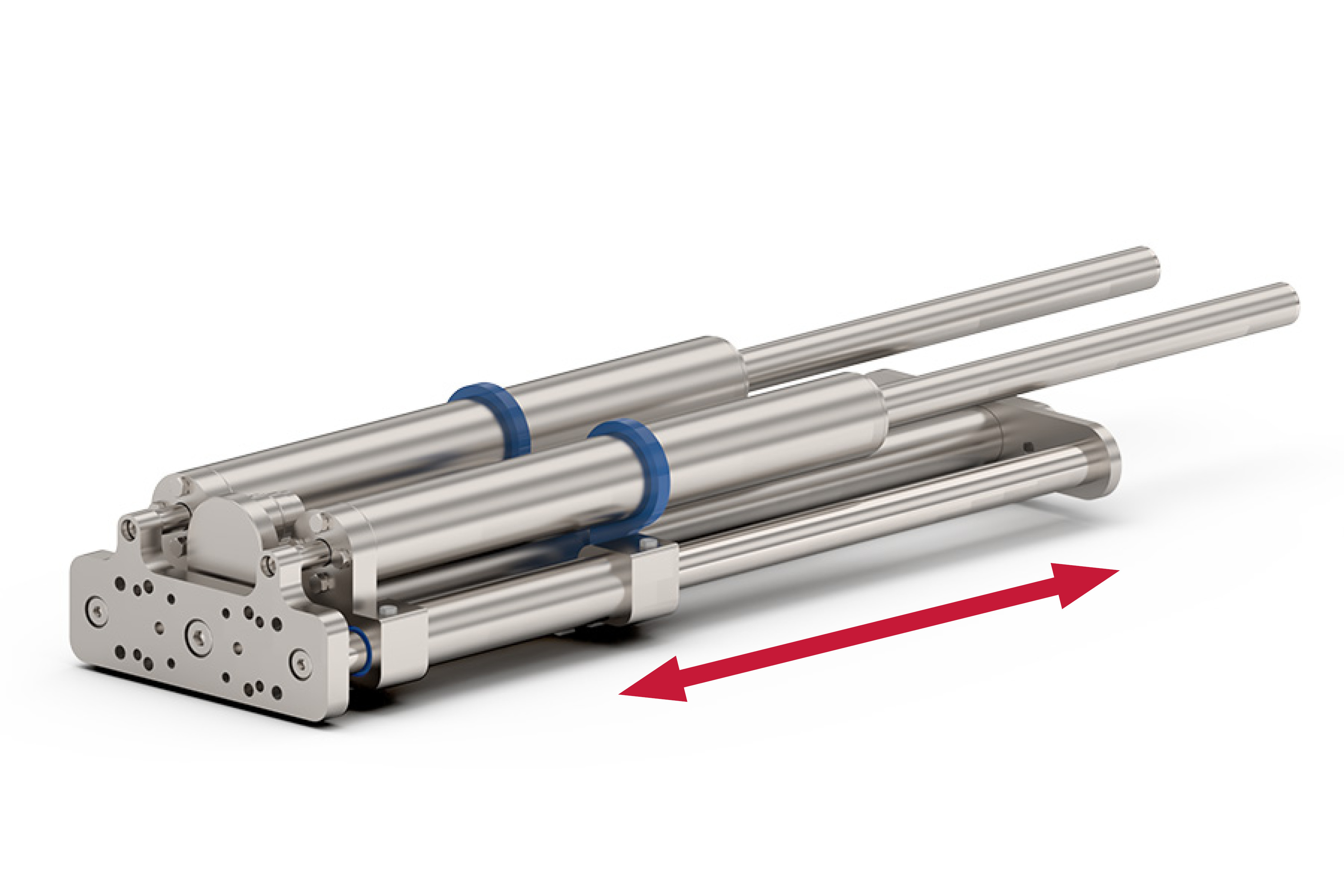

/data/media/images/shop/0150-7074_SM01-48x150G-HP-C-255_BE30_MS09_SSCP.jpg

The article has been added to the shopping list.

SM01-48x150G-HP-C-255_BE01_MS09_SSCP

Art.-Nr.: 0150-6900
Linearmodul SSCP, Gleitlager, MagSpring 200N, Hub max. 255 mm

Hygienisches Linearmodul aus Edelstahl mit Gleitlager: für anspruchsvolle Anwendungen mit regelmässigen Reinigungen in Feucht- oder Nassbereichen.

Technische Daten
Max. Hub	315	mm
Gewichtausgleich (-MS)	120	N
Max. Kraft	477	N
Nennkraft	139	N
Wiederholgenauigkeit	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Platte / Motor	Edelstahl 1.4404/316L
Material Führungwelle	Edelstahl 1.4404/316L
IP Schutzklasse	IP69

/data/media/images/shop/0150-6044_SM01-48x150G-HP-C-255_BE01_MS08_SSCP.jpg

The article has been added to the shopping list.

SM01-48x150G-HP-C-315_BE01_MS08_SSCP

Art.-Nr.: 0150-7011
Linearmodul SSCP, Gleitlager, MagSpring 120N, Hub max. 315 mm

Hygienisches Linearmodul aus Edelstahl mit Linearkugellager: für anspruchsvolle Anwendungen in Feucht- oder Nassbereichen.

Technische Daten
Max. Hub	165	mm
Gewichtausgleich (-MS)	200	N
Max. Kraft	477	N
Nennkraft	139	N
Wiederholgenauigkeit	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Platte / Motor	Edelstahl 1.4404/316L
Material Führungwelle	Edelstahl 1.4404/316L
IP Schutzklasse	IP69

The article has been added to the shopping list.

SM01-48x240F-HP-C-165_BE01_MS09_SSCP

Art.-Nr.: 0150-7242
Linearmodul SSCP, Gleitlager, MagSpring 200N, Hub max. 165 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	105	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

/data/media/images/shop/0150-4835_SM01-48x150G-HP-C-165_BE01_MS08_SSCP_small.jpg

The article has been added to the shopping list.

SM01-48x150G-HP-C-105_BE01_MS08_SSCP

Art.-Nr.: 0150-4833
Linear Module, Plain Bearing, MagSpring 120N, Stroke max 105 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	105	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-105_BE01_MS09_SSCP

Art.-Nr.: 0150-7246
Linear Module, Plain Bearing, MagSpring 200N, Stroke max 105 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x150G-HP-C-165_SSCP

Art.-Nr.: 0150-4453
Linear Module, Linear Ball Bearing, Stroke max 165 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

/data/media/images/shop/0150-4834_SM01-48x150G-HP-C-105_MS08_SSCP_small.jpg

The article has been added to the shopping list.

SM01-48x150G-HP-C-165_MS08_SSCP

Art.-Nr.: 0150-4836
Linear Module, Linear Ball Bearing, MagSpring 120N, Stroke max 165 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-165_BE01_SSCP

Art.-Nr.: 0150-4340
Linear Module, Plain Bearing, Stroke max 165 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-165_BE01_MS08_SSCP

Art.-Nr.: 0150-4835
Linear Module, Plain Bearing, MagSpring 120N, Stroke max 165 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-165_BE01_MS09_SSCP

Art.-Nr.: 0150-7247
Linear Module, Plain Bearing, MagSpring 200N, Stroke max 165 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	255	mm
Weight Compensation (-MS)	120	N
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-255_BE01_MS08_SSCP

Art.-Nr.: 0150-6044
Linear Module, Plain Bearing, MagSpring 120N, Stroke max 255 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	255	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x150G-HP-C-255_SSCP

Art.-Nr.: 0150-4484
Linear Module, Linear Ball Bearing, Stroke max 255 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	255	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-255_BE01_SSCP

Art.-Nr.: 0150-4393
Linear Module, Plain Bearing, Stroke max 255 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	375	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x150G-HP-C-375_SSCP

Art.-Nr.: 0150-4485
Linear Module, Linear Ball Bearing, Stroke max 375 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	375	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x150G-HP-C-375_BE01_SSCP

Art.-Nr.: 0150-4394
Linear Module, Plain Bearing, Stroke max 375 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	465	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x150G-HP-C-465_SSCP

Art.-Nr.: 0150-4486
Linear Module, Linear Ball Bearing, Stroke max 465 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	555	mm
Weight Compensation (-MS)	no
Peak Force	312	N
Continuous Force	87	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x150G-HP-C-555_SSCP

Art.-Nr.: 0150-4487
Linear Module, Linear Ball Bearing, Stroke max 555 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	no
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_SSCP

Art.-Nr.: 0150-4454
Linear Module, Linear Ball Bearing, Stroke max 75 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	120	N
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

/data/media/images/shop/0150-5634_SM01-48x240F-HP-C-285_MS08_SSCP_small.jpg

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_MS08_SSCP

Art.-Nr.: 0150-4838
Linear Module, Linear Ball Bearing, MagSpring 120N, Stroke max 75 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	no
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_BE01_SSCP

Art.-Nr.: 0150-4395
Linear Module, Plain Bearing, Stroke max 75 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	80	N
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

/data/media/images/shop/thumbs/nopic.jpg

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_BE01_MS05_SSCP

Art.-Nr.: 0150-5558
Linear Module, Linear Plain Bearing, MagSpring 80N, Stroke max 75 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	120	N
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

/data/media/images/shop/0150-4788_SM01-48x240F-HP-C-165_BE01_MS08_SSCP_small.jpg

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_BE01_MS08_SSCP

Art.-Nr.: 0150-4837
Linear Module, Plain Bearing, MagSpring 120N, Stroke max 75 mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	75	mm
Weight Compensation (-MS)	120	N
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-48x240F-HP-C-75_BE01_MS09_SSCP

Art.-Nr.: 0150-7244
Linearmodul SSCP, Gleitlager, MagSpring 200N, Hub max. 75 mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	165	mm
Weight Compensation (-MS)	no
Peak Force	477	N
Continuous Force	139	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-48x240F-HP-C-165_SSCP

Art.-Nr.: 0150-4490
Linear Module, Linear Ball Bearing, Stroke max 165 mm

« Back | Page 2 of 3 | Choose page: 1 2 3 | 58 items | Next »

Search

Linear Modules SM01-48-SSCP

Data sheet 0185-0033 (DE):

Data sheet 0185-0106 (DE):
