Linear Modules SM01-37-SSCP

Select order:

Numbers of articles:

Choose list type:

Hygienisches Linearmodul aus Edelstahl mit Gleitlager: für anspruchsvolle Anwendungen mit regelmässigen Reinigungen in Feucht- oder Nassbereichen.

Technische Daten
Max. Hub	280	mm
Gewichtausgleich (-MS)	50	N
Max. Kraft	139.5	N
Nennkraft	33	N
Wiederholgenauigkeit	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Platte / Motor	Edelstahl 1.4404/316L
Material Führungwelle	Edelstahl 1.4404/316L
IP Schutzklasse	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-280_BE01_MS03_SSCP

Art.-Nr.: 0150-5690
Linear Module SSCP, Plain Bearing, MagSpring 50N, stroke max 280mm

Hygienisches Linearmodul aus Edelstahl mit Gleitlager: für anspruchsvolle Anwendungen mit regelmässigen Reinigungen in Feucht- oder Nassbereichen.

Technische Daten
Max. Hub	120	mm
Gewichtausgleich (-MS)	100	N
Max. Kraft	255	N
Nennkraft	58	N
Wiederholgenauigkeit	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Platte / Motor	Edelstahl 1.4404/316L
Material Führungwelle	Edelstahl 1.4404/316L
IP Schutzklasse	IP69

The article has been added to the shopping list.

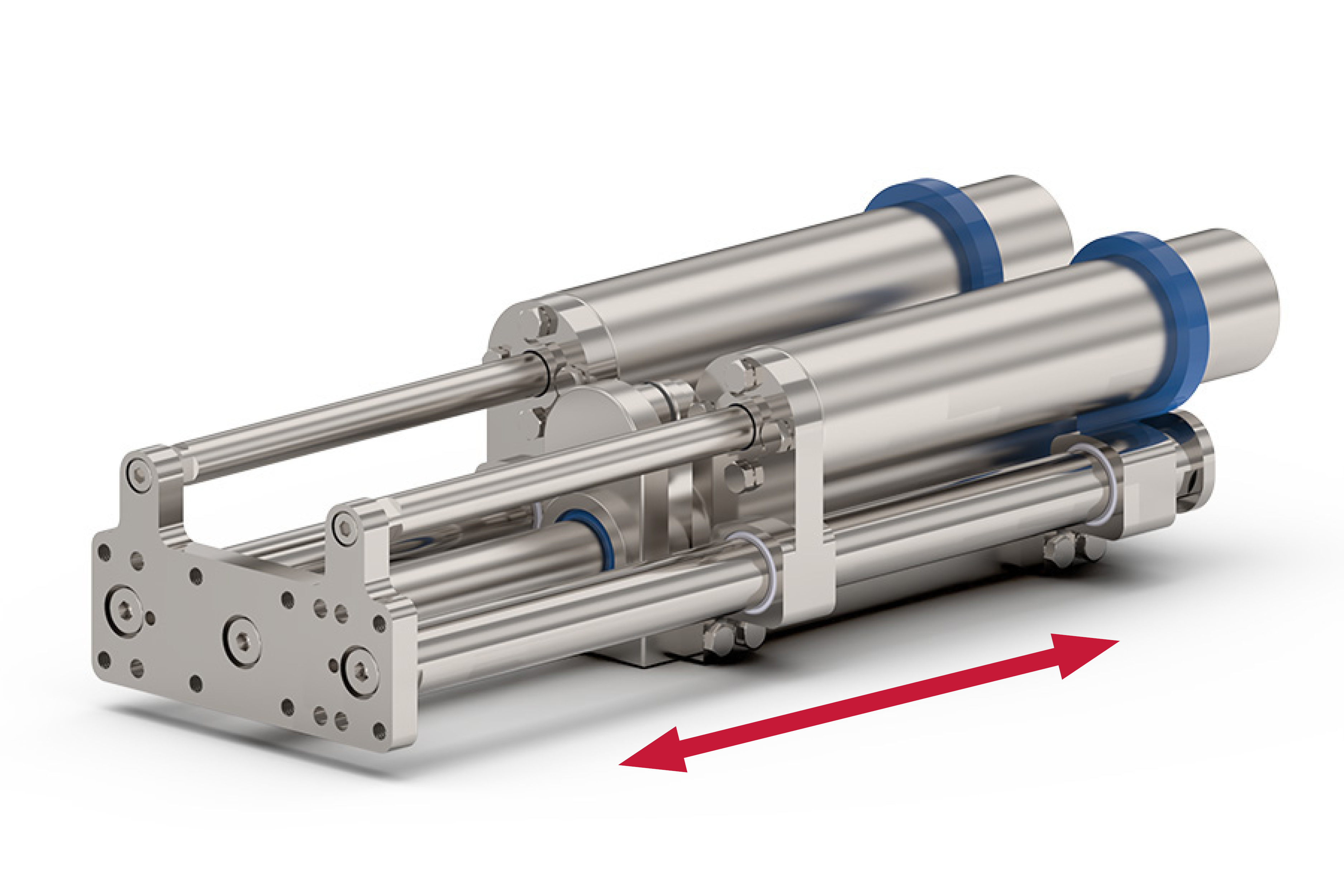

SM01-37Sx120F-XP-R-120_BE01_MS06_SSCP

Art.-Nr.: 0150-7209
Linear Module SSCP, Plain Bearing, MagSpring 100N, Stroke max 120mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_SSCP

Art.-Nr.: 0150-4413
Linear Module SSCP, Linear Ball Bearing, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	40	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_MS02_SSCP

Art.-Nr.: 0150-4437
Linear Module SSCP, Linear Ball Bearing, MagSpring 40N, stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	50	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_MS03_SSCP

Art.-Nr.: 0150-4438
Linear Module SSCP, Linear Ball Bearing, MagSpring 50N, stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_MS04_SSCP

Art.-Nr.: 0150-4439
Linear Module SSCP, Linear Ball Bearing, MagSpring 60N, stroke max 100mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_BE01_SSCP

Art.-Nr.: 0150-4351
Linear Module SSCP, Plain Bearing, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	40	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_BE01_MS02_SSCP

Art.-Nr.: 0150-4352
Linear Module SSCP, Plain Bearing, MagSpring 40N, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	50	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_BE01_MS03_SSCP

Art.-Nr.: 0150-4353
Linear Module SSCP, Plain Bearing, MagSpring 50N, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-100_BE01_MS04_SSCP

Art.-Nr.: 0150-4354
Linear Module SSCP, Plain Bearing, MagSpring 60N, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	27 / 36 / 42.5	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4112/440B
IP Protection Class	IP67S

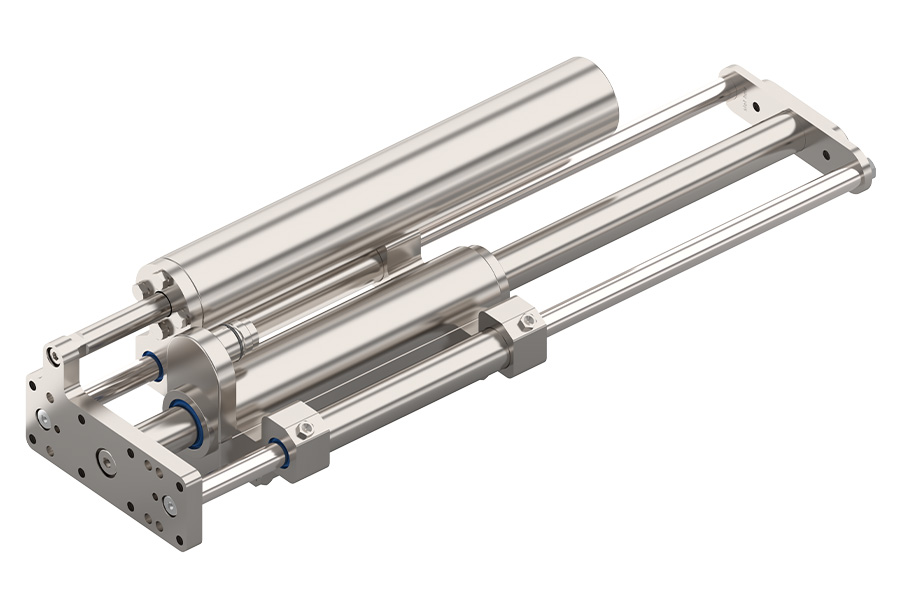

/data/media/images/shop/SM01-37x120_MS_BE20_top.jpg

The article has been added to the shopping list.

SM01-37Sx60-XP-R-100_BE20_SSCP

Art.-Nr.: 0150-6890
Linear Module SSCP, Linear Ball Bearing, 12mm rods, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	100	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	27 / 36 / 42.5	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4112/440B
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-XP-R-100_BE20_MS04_SSCP

Art.-Nr.: 0150-6740
Linear Module SSCP, Linear BB,12mm rods,MagSpring 60N, Stroke max 100mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_SSCP

Art.-Nr.: 0150-4414
Linear Module SSCP, Linear Ball Bearing, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	27 / 36 / 42.5	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4112/440B
IP Protection Class	IP67S

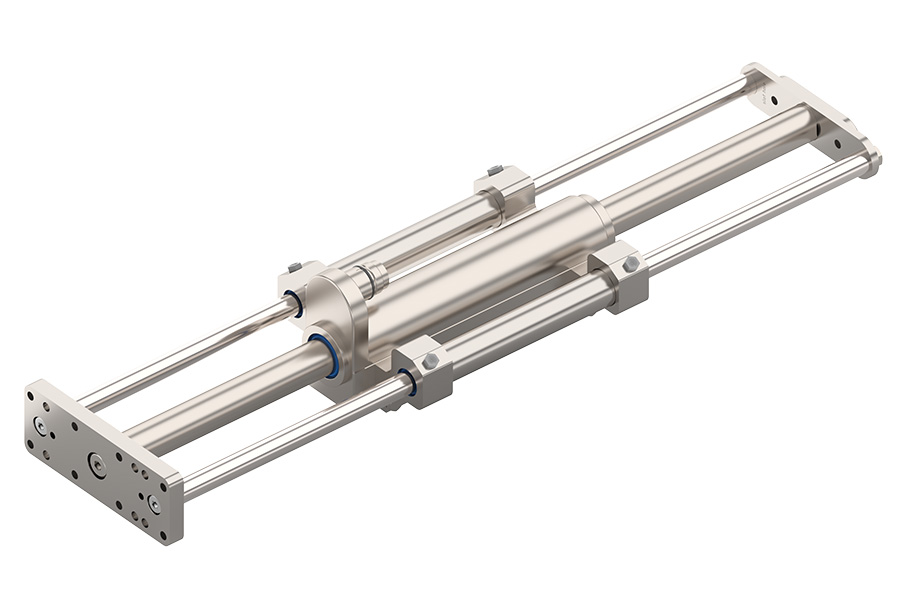

/data/media/images/shop/SM01-37x120_BE20_top.jpg

The article has been added to the shopping list.

SM01-37Sx60-XP-R-180_BE20_SSCP

Art.-Nr.: 0150-6707
Linear Module SSCP, Linear Ball Bearing, 12mm rods, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	27 / 36 / 42.5	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4112/440B
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-XP-R-180_BE20_MS04_SSCP

Art.-Nr.: 0150-6711
Linear Module SSCP, Linear BB,12mm rods,MagSpring 60N, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	40	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_MS02_SSCP

Art.-Nr.: 0150-4440
Linear Module SSCP, Linear Ball Bearing, MagSpring 40N, stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	50	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_MS03_SSCP

Art.-Nr.: 0150-4441
Linear Module SSCP, Linear Ball Bearing, MagSpring 50N, stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_MS04_SSCP

Art.-Nr.: 0150-4442
Linear Module SSCP, Linear Ball Bearing, MagSpring 60N, stroke max 180mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_BE01_SSCP

Art.-Nr.: 0150-4210
Linear Module SSCP, Plain Bearing, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	40	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_BE01_MS02_SSCP

Art.-Nr.: 0150-4355
Linear Module SSCP, Plain Bearing, MagSpring 40N, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	50	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_BE01_MS03_SSCP

Art.-Nr.: 0150-4356
Linear Module SSCP, Plain Bearing, MagSpring 50N, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with plain bushings: for demanding applications in very dirty, damp or wet environments.

Technical Data
Max. Stroke	180	mm
Weight Compensation (-MS)	60	N
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4404/316L
IP Protection Class	IP69

The article has been added to the shopping list.

SM01-37Sx60-HP-R-180_BE01_MS04_SSCP

Art.-Nr.: 0150-4357
Linear Module SSCP, Plain Bearing, MagSpring 60N, Stroke max 180mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	280	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	33	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Hartverchromt
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-HP-R-280_SSCP

Art.-Nr.: 0150-4415
Linear Module SSCP, Linear Ball Bearing, Stroke max 280mm

‌‌

Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments.

Technical Data
Max. Stroke	280	mm
Weight Compensation (-MS)	no
Peak Force	139.5	N
Continuous Force	27 / 36 / 42.5	N
Repeatability	±0.05	mm
Motorkabel
Supported Drives

Mechanische Daten
Material Plate / Motor	Edelstahl 1.4404/316L
Material Guide Shaft	Edelstahl 1.4112/440B
IP Protection Class	IP67S

The article has been added to the shopping list.

SM01-37Sx60-XP-R-280_BE20_SSCP

Art.-Nr.: 0150-6708
Linear Module SSCP, Linear Ball Bearing, 12mm rods, Stroke max 280mm

« Back | Page 1 of 3 | Choose page: 1 2 3 | 59 items | Next »
