SM01-37Sx60-HP-R-180_MS02_SSCP

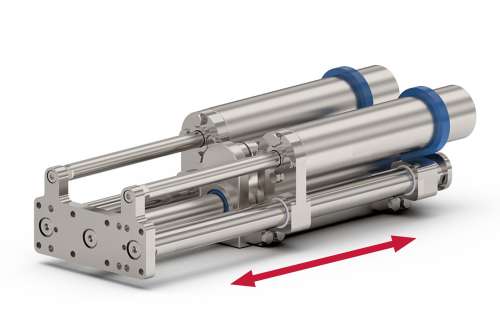

Linear Module SSCP, Linear Ball Bearing, MagSpring 40N, stroke max 180mm
| Hygienic stainless steel linear module with ball bearings: for demanding applications in dirty, damp or wet environments. | ||
| Technical Data | ||
| Max. Stroke | 180 | mm |
| Weight Compensation (-MS) | 40 | N |
| Peak Force | 128 | N |
| Continuous Force | 33 | N |
| Repeatability | ±0.05 | mm |
| Motorkabel | ||
| Supported Drives | ||
| Mechanische Daten | ||
| Material Plate / Motor | Edelstahl 1.4404/316L | |
| Material Guide Shaft | Hartverchromt | |
| IP Protection Class | IP67S | |
The article has been added to the shopping list.
The article has been added to the shopping list.
Documents
| Name | Version | Type | Size |
|---|---|---|---|
 Data sheet 0185-0131 (DE): Linear Modules SM01 SSCP
|
1V3 | 12.18M | |
|
Data sheet 0185-0131 (EN): Linear Modules SM01 SSCP
|
1V3 | 12.14M | |
|
Installation guide 0185-0133 (DE): Linear modules SM01-37S
|
1V4 | 7.79M | |
|
Installation guide 0185-0133 (EN): Linear modules SM01-37S
|
1V4 | 8.01M |
CAD
| Name | Version | Type | Size |
|---|---|---|---|
 CAD drawing 0186-1197: SM01-37Sx60-HP-R-180_MS02_SSCP
|
240402 | STEP | 4.07M |
Software
| Name | Version | Type | Size |
|---|---|---|---|
|
User manual 0185-1098 (EN): Tutorial LinMot Designer
|
1V102 | 4.14M | |
 EPlan Macros
|
1V004 | ZIP | 18.66M |
|
LinMot Designer Motor Sizing Software (PC)
|
1V11 | 3.79M | |
|
LinMot Designer Motor Sizing Software (PC)
|
1V11 | EXE | 8.82M |
|
LinMot Designer Motor Sizing Software (PC)
|
1V11 | ZIP | 8.24M |
