| Hollow Shaft (Option -L) |
no |
| |
| Technical Data Linear Part |
| Max. Stroke |
80 |
mm |
| Peak Force |
255 |
N |
| Continuous Force |
51/92 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
503 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
2680 |
g |
| Moving Mass (Linear) |
790 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|

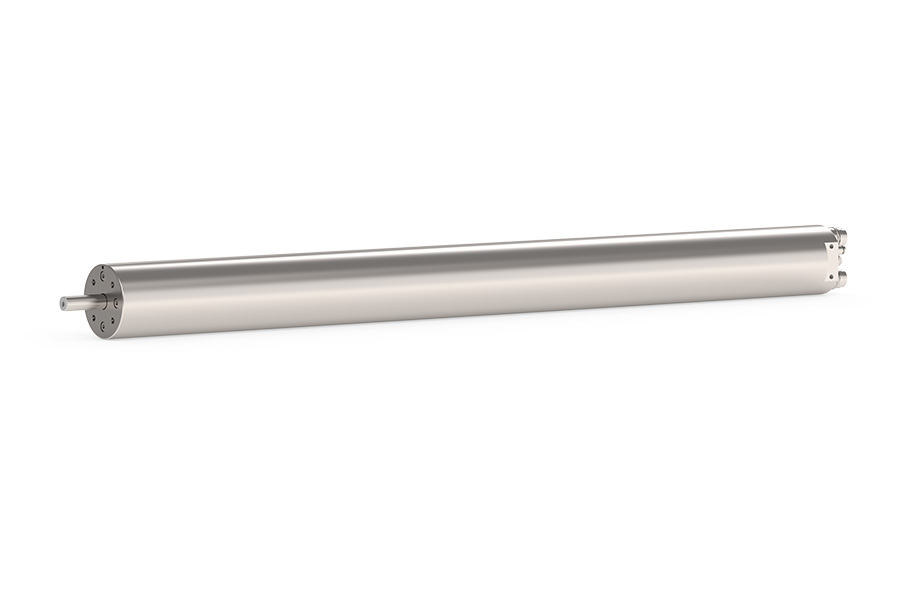

Linear Rotary Motors PR01-52
| Hollow Shaft (Option -L) |
yes |
| |
| Technical Data Linear Part |
| Max. Stroke |
80 |
mm |
| Peak Force |
229 |
N |
| Continuous Force |
45/82 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
503 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
2680 |
g |
| Moving Mass (Linear) |
790 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|
| Hollow Shaft (Option -L) |
no |
| |
| Technical Data Linear Part |
| Max. Stroke |
100 |
mm |
| Peak Force |
255 |
N |
| Continuous Force |
51/92 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
565 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
3120 |
g |
| Moving Mass (Linear) |
860 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|
| Hollow Shaft (Option -L) |
yes |
| |
| Technical Data Linear Part |
| Max. Stroke |
100 |
mm |
| Peak Force |
229 |
N |
| Continuous Force |
45/82 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
565 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
3120 |
g |
| Moving Mass (Linear) |
860 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|
| Hollow Shaft (Option -L) |
no |
| |
| Technical Data Linear Part |
| Max. Stroke |
150 |
mm |
| Peak Force |
255 |
N |
| Continuous Force |
51/92 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
704 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
3700 |
g |
| Moving Mass (Linear) |
950 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|
| Hollow Shaft (Option -L) |
yes |
| |
| Technical Data Linear Part |
| Max. Stroke |
150 |
mm |
| Peak Force |
229 |
N |
| Continuous Force |
45/82 |
N |
| Max. Velocity |
3.9 |
m/s |
| Position Repeatability |
±0.05 |
mm |
| Motor Cable |
| Supported Drives |
| |
| Technical Data Rotary Part |
| Max. Torque |
2.2 |
Nm |
| Constant Torque (Halt) |
0.47 |
Nm |
| Max. Number of Revolutions |
1500 |
rpm |
| Repeatability |
±0.05 |
° |
| Motor Cable |
| Supported Drives |
| |
| Mechanical Data |
| Length |
704 |
mm |
| Diameter Linear Part |
37 |
mm |
| Diameter Rotary Part |
52 |
mm |
| Mass |
3700 |
g |
| Moving Mass (Linear) |
950 |
g |
| Axle Diameter |
12h9 |
mm |
| Protection Class |
IP64 |
|
