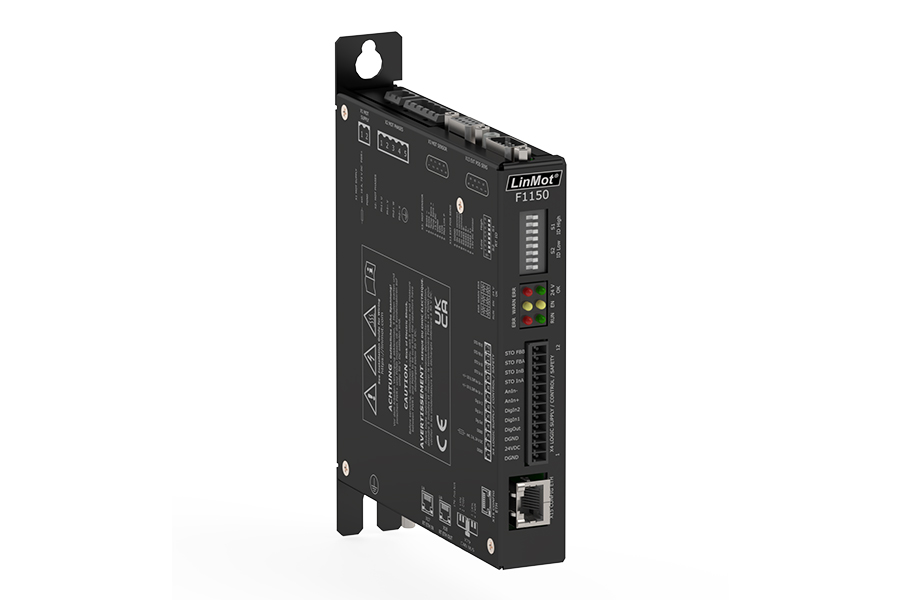

F1150-DS-UC-3S-000

Article no.: 0150-6489

Compact drive for an ideal use in point-to-point applications.
‌
Technical data
Interface	CANopen
‌	EtherCAT CoE
Safety	STO
Motor Supply	24...72 VDC
Motor Current	32 A
Analog Inputs 0..10V	0
Analog Inputs +-10V	1
Digital In and Outputs	2 / 1
External Encoders	A/B
‌	BISS
‌	EnDat
‌	SSI
‌
Mechanical data
Height	26 mm (1.03 in)
Length	185 mm (7.28 in)
Width	136 mm (5.35 in)
Weight	765 g (1.69 lb)
‌
Certificates	CE
‌	UKCA
‌	UL pending

Documents

Name	Version	Type	Size
Data sheet 0185-0222 (DE): Drives F1150	1V0	PDF	2.03M
Data sheet 0185-0222 (EN): Drives F1150	1V0	PDF	2.20M
Installation guide 0185-1101 (DE): Drives F1150	1V5	PDF	1.64M
Installation guide 0185-1102 (EN): Drives F1150	1V5	PDF	1.77M
Installation guide 0185-1101 (FR): Drives F1150	1V5	PDF	1.60M
Installation guide 0185-1101 (IT)): Drives F1150	1V5	PDF	1.62M

Name	Version	Type	Size
CAD drawing 0186-2431: F1150-DS-UC-3S-000	250219	STEP	10.98M

Name	Version	Type	Size
User manual 0185-1059 (EN): LinMot-Talk	6V20	PDF	15.93M
User manual 0185-1079 (EN): EtherCAT	6V4	PDF	2.63M
User manual 0185-1096 (EN): TF ForceControl	1V2	PDF	215.21K
User manual 0185-1105 (EN): PLC libraries overview	1V15	PDF	180.01K
Application note 0185-1120 (EN): PLC Commissioning	1V11	PDF	21.36M
EPlan Macros	1V007	ZIP	15.13M
VDMA Library VDMA 66413, Sistema, Functional Safety, Siemens TIA Selection Tool, Pilz PASCal	1V0	ZIP	400.09K
